Coulter Parts 3 Bolt

Coulter Parts 3 Bolt

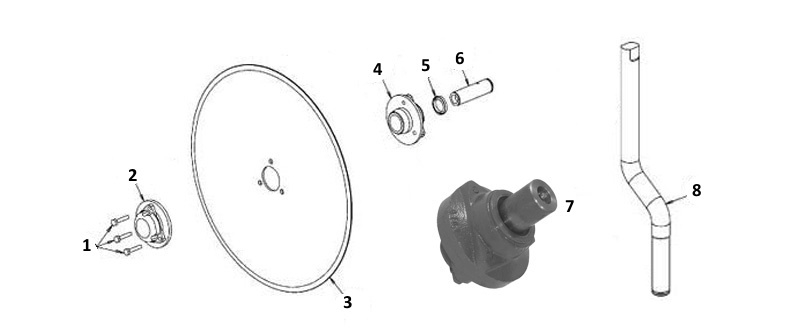

Exploded View Number Code Image Description Price Quantity
1 933840 933840 M8x40 Hex Setscrew 8.8 Zinc Pl 933840 M8x40 Hex Setscrew 8.8 Zinc Pl
3 Bolts required
£0.11 (exc VAT)
-
+
2 KK056156N KK056156N Cap KK056156N Cap £8.14 (exc VAT)
-
+
3 KK056112N KK056112N Coulter Disc 450mm KK056112N Coulter Disc 450mm £36.92 (exc VAT)
-
+
4,5,6 KK060624Z KK060624Z Hub c/w Brg & 30mm Shaft KK060624Z Hub c/w Brg & 30mm Shaft
30mm Shaft Comprises parts 4,5 & 6
£53.85 (exc VAT)
-
+
7 KK056157N KK056157N Hub Assembly c/w Shaft 34mm KK056157N Hub Assembly c/w Shaft 34mm
No 7 is made up of 1,2,4,5 & 6 - Shaft size 34mm Does not include disc
£143.93 (exc VAT)
-
+
8 KK056003N KK056003N Disc Coulter Stem KK056003N Disc Coulter Stem £119.34 (exc VAT)
-
+
