Clutch

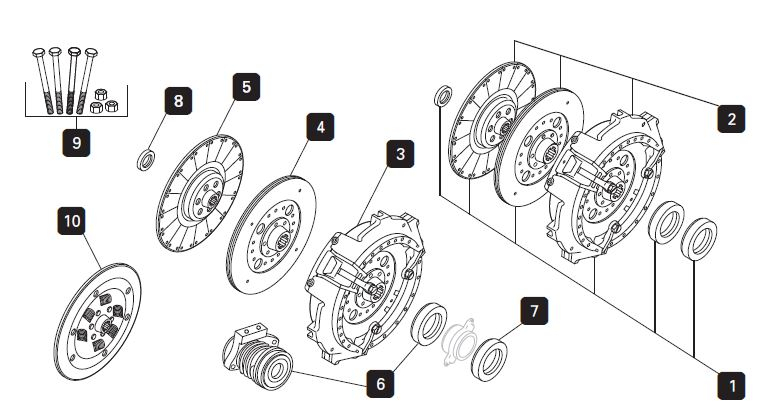

Exploded View Number	Code	Description	Price	Quantity
1	VPG8547	VPG8547 Complete Clutch kit 320 Single Contains VPC5014 & VPG2218 main drive plate	£450.03 (exc VAT)	- +
1	VPG8549	VLG8549 Special clutch kit 330 Single Contains VPC5014 Contains VPG5062 & VPG2184 main drive plate	£548.73 (exc VAT)	- +
1	VPG8550	VPG8550 Complete Clutch Kit 330 Single to 649118 Contains VPC5014 and 3 port release bearing VPG5084 & VPG2184	£605.77 (exc VAT)	- +
1	VPG7426	VPG7426 Clutch Kit Single 330 LuK	£931.98 (exc VAT)	- +
1	VPG7428	VPG7428 Clutch Kit Single 330 LuK	£841.04 (exc VAT)	- +
1	VPG7431	VPG7431 Clutch Kit Single 330 LuK	£1118.68 (exc VAT)	- +
1	VPG7432	VPG7432 Clutch kit Single 330 LuK	£1142.01 (exc VAT)	- +
1	VPG7442	VPG7442 Clutch kit Single 330 LuK	£843.38 (exc VAT)	- +
1	VPG9601	VPG9601 - Complete kit 320 Single LuK Please check that kit contains correct main drive plate & release bearing	£1021.10 (exc VAT)	- +
1	VPG9604	1 330 Single LuK to 649118 Please check that kit contains correct main drive plate & release bearing	£1146.51 (exc VAT)	- +
1	VPG6806	VPG6806 - Clutch kit 330 Single Includes VPG1069 (AL68485) and LuK 5 paddle plate, equivalent to VPG2184 (AL61754)	£490.29 (exc VAT)	- +
1	VPG6531	VPG6531 - Clutch kit with 6 paddle plate 330 Single LuK Includes VPG1069 (AL68485) and LuK 5 paddle plate, equivalent to VPG2184 (AL61754)	£794.24 (exc VAT)	- +
3	VPG1069	VPG1069 - Clutch Cover Assembly 330 Single LuK With PTO Damper hub 45mm x 27 spline	£627.06 (exc VAT)	- +
3	VPG1203	VPG1203 - Clutch cover assembly 320 Single LuK With intermediate segments, asbestos free, with compensating springs Integral PTO Damper	£745.30 (exc VAT)	- +
3	VPG1242	VPG1242 - Clutch cover assembly 330 Single LuK Integral PTO Damper	£622.59 (exc VAT)	- +
3	VPG1404	VPG1404 - Main assembly 320 Single With intermediate segments, asbestos free, with compensating springs Integral PTO Damper	£468.80 (exc VAT)	- +
3	VPG1412	VPG1412 - Main drive assembly 330 Single With PTO Damper hub 45mm x 27 spline	£419.05 (exc VAT)	- +
4	VPG2969	VPG2969 - Main drive plate 320 Single LuK Torsion damped With intermediate segments, asbestos free, with standard damper, 15 splines Organic lining 320mm Diameter	£401.73 (exc VAT)	- +
4	VPG2986	VPG2986 - Main drive plate 330 Single For normal operating conditions See technical details for specification	£217.68 (exc VAT)	- +
4	VPG2989	VPG2989 - Main Drive plate 330 Single Six paddle With dual segment cushion, cerametallic lining, with compensating springs 327mm Diameter	£165.75 (exc VAT)	- +
4	VPG2994	VPG2994 - Main drive plate 320 Single, 330 Single 7 Flexible paddle type, with torsion springs. With dual segment cushion, cerametallic lining, with compensating springs 321mm	£242.90 (exc VAT)	- +
4	VPG2042	VPG2042 - Clutch plate 320 Single LuK, 330 Single LuK 7 Flexible paddle type, with torsion springs. With dual segment cushion, cerametallic lining, with compensating spring	£416.76 (exc VAT)	- +
4	VPG2218	VPG2218 - Clutch driven plate 320 Single Torsion damped With intermediate segments, asbestos free, with standard damper, 15 splines Organic lining 320mm Diameter	£86.94 (exc VAT)	- +
4	VPG2348	VPG2348 - Clutch Plate 6 paddle 330 Single LuK Six paddle With dual segment cushion, cerametallic lining, with compensating springs 327mm Diameter	£349.56 (exc VAT)	- +
4	VPG2373	VPG2373 - Clutch plate 330 Single LuK For normal operating conditions	£462.75 (exc VAT)	- +
4	VPG2374	VPG2374 - Clutch plate 330 Single LuK Five paddle sintered Torsion damped 327mm Diamete	£362.86 (exc VAT)	- +
6	VPG5062	VPG5062 - Clutch release bearing 320 Single, 330 Single Less SG2 cab Complete with carrier	£61.07 (exc VAT)	- +
6	VPG5084	VPG5084 - Clutch Thrust bearing 3 port connection 320 Single LuK, 330 Single LuK to 649118 With SG2 cab Hydraulic 3 port connections	£353.16 (exc VAT)	- +
6	VPG5085	VPG5085 - Clutch Thrust bearing 2 port connection 320 Single LuK, 330 Single LuK from 649119 With SG2 cab Hydraulic 2 port connections	£344.84 (exc VAT)	- +
6	VPG5273	VPG5273 Clutch bearing 320 Single, 330 Single from 649119 With SG2 cab Hydraulic 2 port connections	£212.33 (exc VAT)	- +
6	VPG5274	VPG5274 - Clutch bearing	£224.79 (exc VAT)	- +
6	VPG5279	VPG5279 - Clutch release bearing 320 Single, 330 Single to 649118 With SG2 cab Hydraulic 3 port connections	£115.30 (exc VAT)	- +
8	VPG5284	VPG5284 - Pilot bearing 320 Single LuK, 330 Single LuK	£21.02 (exc VAT)	- +
8	VPG5029	VPG5029 - Pilot bearing 320 Single, 330 Single,	£2.60 (exc VAT)	- +
